Description
Digital content is the driving force of content delivery in business and even consumer applications and is growing by leaps and bounds. One of the fastest-growing methods for distributing content is through flash memory, which is most commonly recognized as USB pen drives or SD/Compact Flash cards. Flash memory devices are used in a multitude of components including computers, smartphones, portable gaming devices, and other useful hardware applications. With so many devices able to use and specifically geared toward this form of digital media, content providers large and small will need a way to make quick, reliable copies.
-
Key Features:
-
Complete Standalone Operation:
No PC required to operate the duplicator. -
Asynchronous Duplication:
Able to copy any size master data onto multiple sources asynchronously (independently) without sacrificing duplication speed or quality for faster and more reliable duplication. -
Smart copy feature:
This feature is used to quickly copy all accessible content contained on the USB device. - Supports all data Formats with bit-by-bit duplication
-
Supports most currently available USB drives:
Supports most currently available USB drives on the market -
Future functions upgradeable through firmware:
Duplicator is able to be upgraded by future firmware updates. -
Supports alternative flash formats:
SD, Micro SD and CF Support with optional corresponding SD, Micro SD, or CF Interface Module Add-on -
Secure Erase:
Fully erase the USB device without the data being recovered. -
Multi-Language capability:
The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request. -
Multilateral USB Compatibility:
Compatible with USB 3.0, 2.0, or 1.0 devices
- Account management (password protection):
This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users. - Auto-Counter Technology:
Displays the total number of discs successfully copied compared to the desired output for each project. - User-friendly interface with 'easy-to-read' LCD:
Offers easy-to-recognize, easy-to-use terms and operations on the LCD for simple use. - Aluminum Case used to provide a highly functional and attractive exterior:
Duplicator casing available in midnight black aluminum. - Fast Key Support:
4 fast keys for faster operations. - Power-on self-diagnostics:
Keeps the duplicator functioning optimally. - Device Info feature:
Provides detailed information about the USB device. - USB Prescan feature:
Able to scan the source USB device for physical reading errors. - Continuous copying without waiting for cool down:
No need to stop the duplicator for fear of overheating.
-
Complete Standalone Operation:
Specifications:
Model

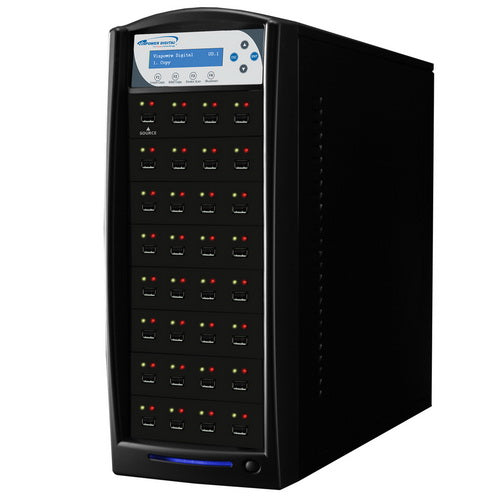

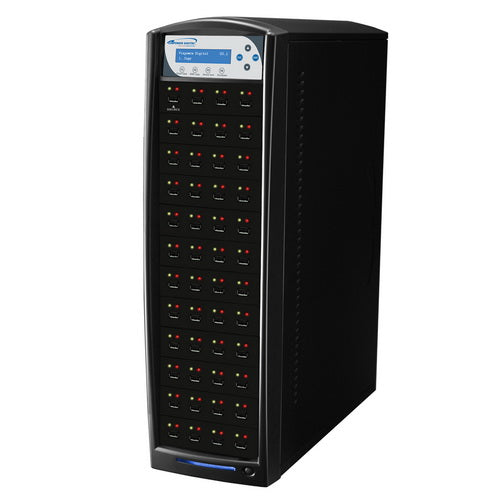

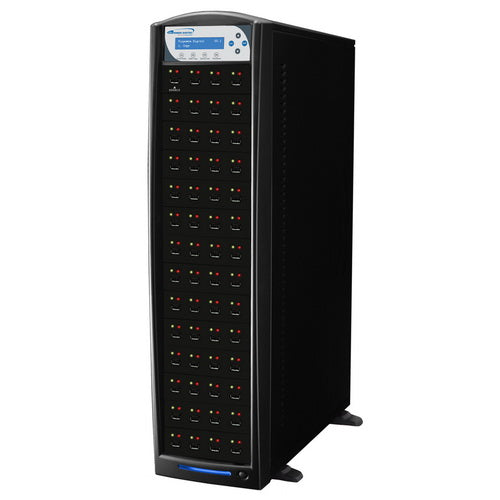

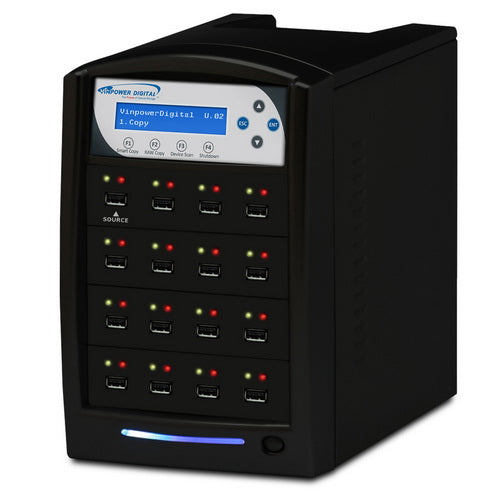

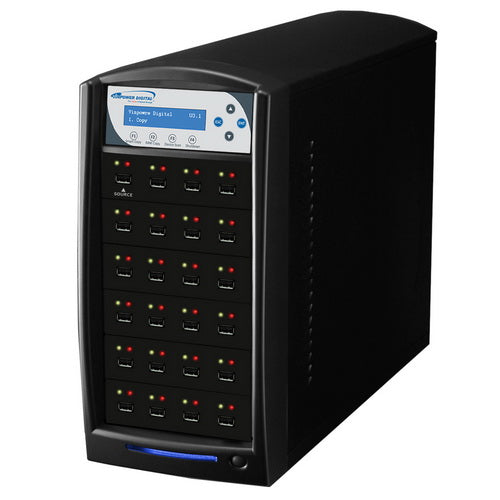

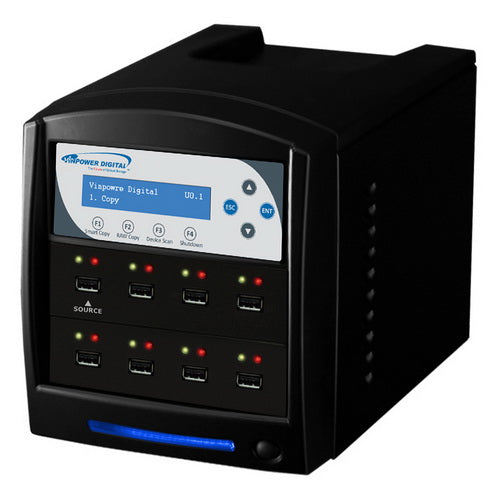

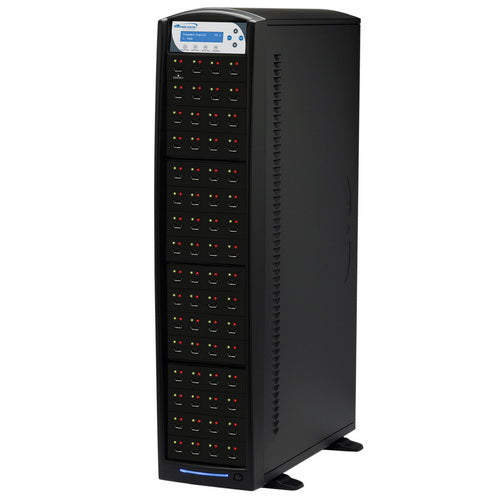

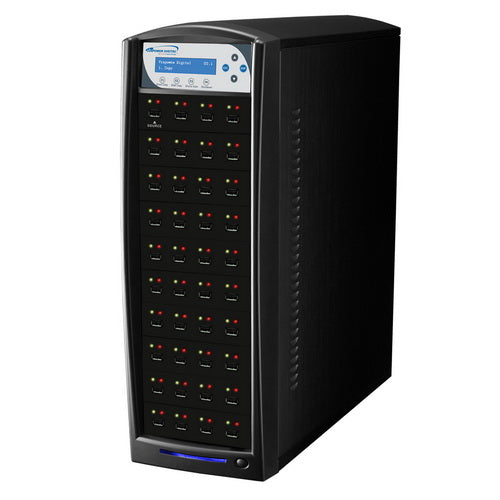

USBShark™ USB Duplicator
Operating Type
Stand-alone
Target
3, 7, 11, 15, 23, 31, 39, 47, 55, 63
Buffer Memory
128MB for every 8 ports
Account Management
32 users (Standard License) or 64 users (Premium License)
Asynchronous Duplication
Yes
Smart Copy
Yes
Auto Counter
Yes
File System Supported
HFS+, HFSX, FAT, exFAT, NTFS, ext2/3/4
Max USB Size Supported
2TB
CF Support
Optional (with CF Interface Module Addon)
Language Support
English, Spanish, French, Japanese & more. Chinese can be added upon request.
Display
20 x 2 Blue LCD
Status LED
Green/Red LED on each port
Color
Black
Maximum Read Speed
33 MB/Sec≈2GB/Min
Maximum Write Speed
31 MB/Sec≈2GB/Min
USB Flash Drives Supported
Recognized USB 3.0/2.0/1.1 Flash Drives
Firmware Upgradeable
Yes
Power Supply
Input : 90 ~ 240 V AC
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS, UL
Manufacture
Vinpower Digital
Throughput Capacity Per Hour:
| Target | 3 | 7 | 11 | 15 | 23 | 31 | 39 | 47 | 55 | 63 |
| USB size: 512MB* | 420 | 980 | 1540 | 2100 | 3220 | 4340 | 5460 | 6580 | 7700 | 8820 |
| USB size: 1 GB* | 210 | 490 | 770 | 1050 | 1610 | 2170 | 2730 | 3290 | 3850 | 4410 |
| USB size: 2 GB* | 105 | 245 | 385 | 525 | 805 | 1085 | 1365 | 1645 | 1925 | 2205 |
| USB size: 4 GB* | 51 | 119 | 187 | 255 | 391 | 527 | 663 | 799 | 935 | 1071 |
| USB size: 8 GB* | 24 | 56 | 88 | 120 | 184 | 248 | 312 | 376 | 440 | 504 |
Important Notice
- The actual reading/writing speed may vary depending on the actual USB device.
- This unit will not copy source material that contains copy protection or non-standard USB storage protocol.
- USBSHARK INFO SHEET
